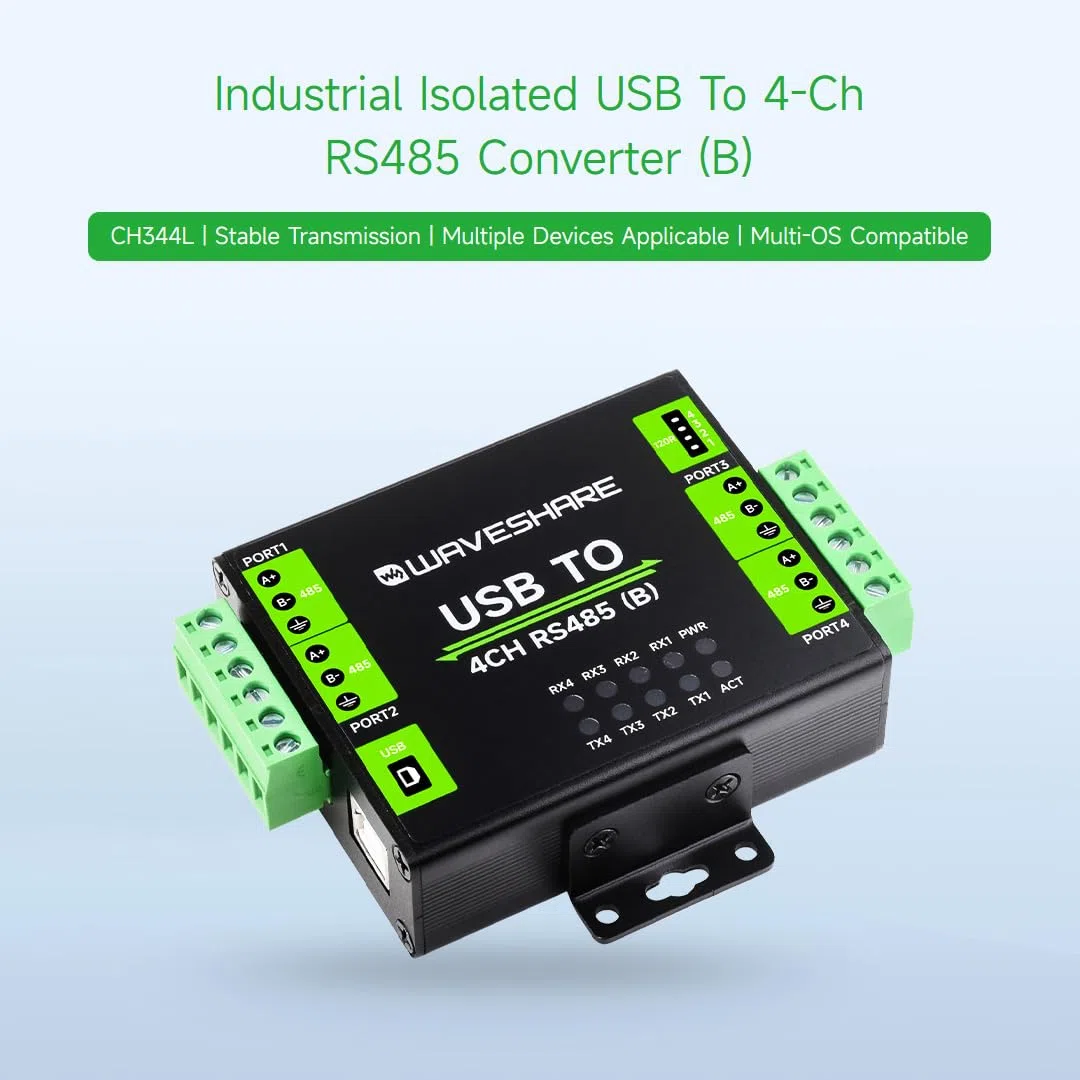

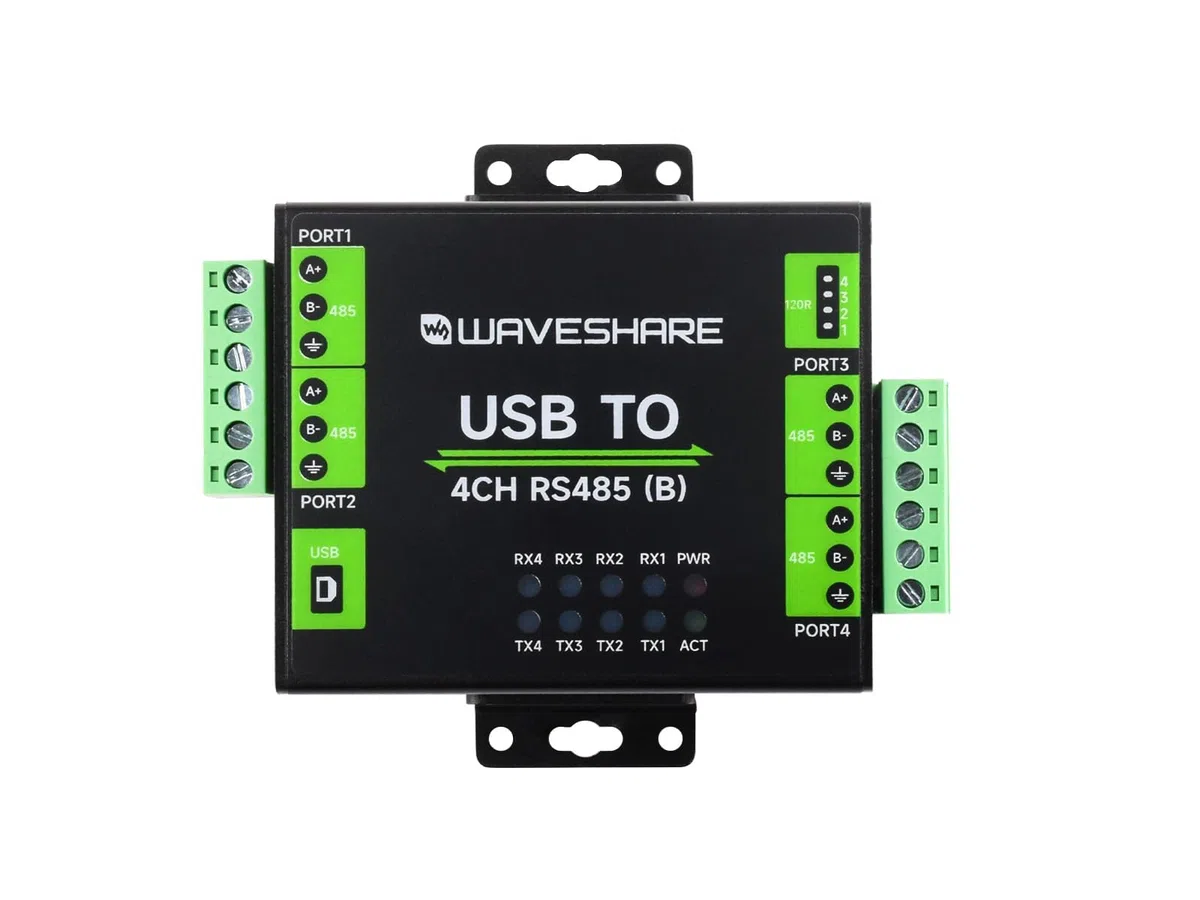

Waveshare Industrial Isolated USB to 4-Ch RS485 Converter (B), CH344L Chip, Multi Protection Circuits, Multi Systems Support, Aluminium Alloy Case, Wall-Mount & Rail-Mount Support

Marke: Waveshare
Befestigungsart: Wandmontage, Hutschiene
Schnittstellentyp: USB
Anzahl der Kanäle: 4
Kompatible Geräte: Personal Computer, Laptop

- Adopts original CH344L chip, fast communicating, stable and reliable, better compatibility. Supports USB to 4-ch isolated RS485, convenient for expanding multiple RS485 industrial serial devices

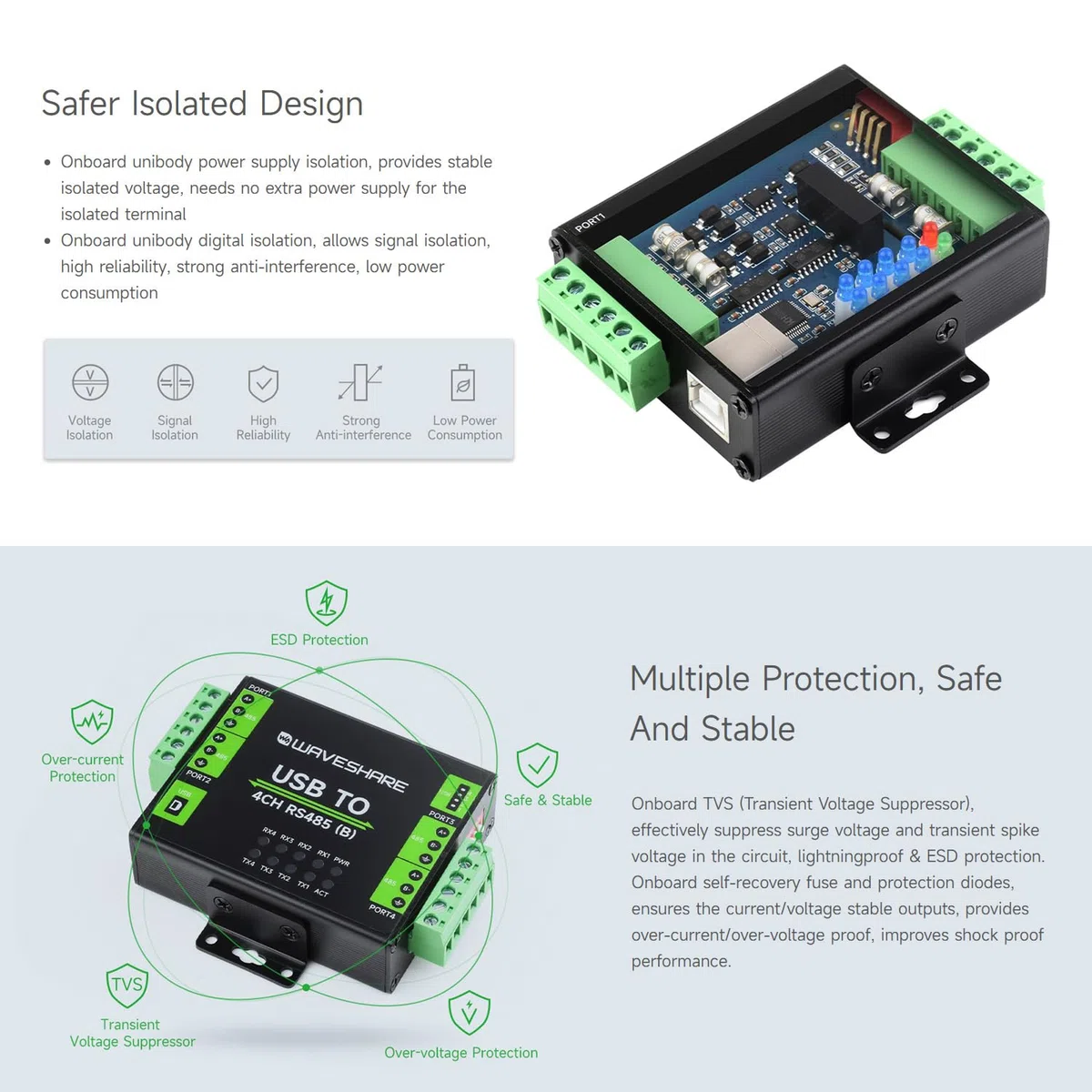

- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption. Onboard RS485 output terminal 120R resistors, enabled/disabled via DIP switch
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
- 10 LEDs for indicating the power, device configuration status and transceiver status. Industrial grade metal case, supports wall-mount & rail-mount installation, solid and beautiful, easy to install
