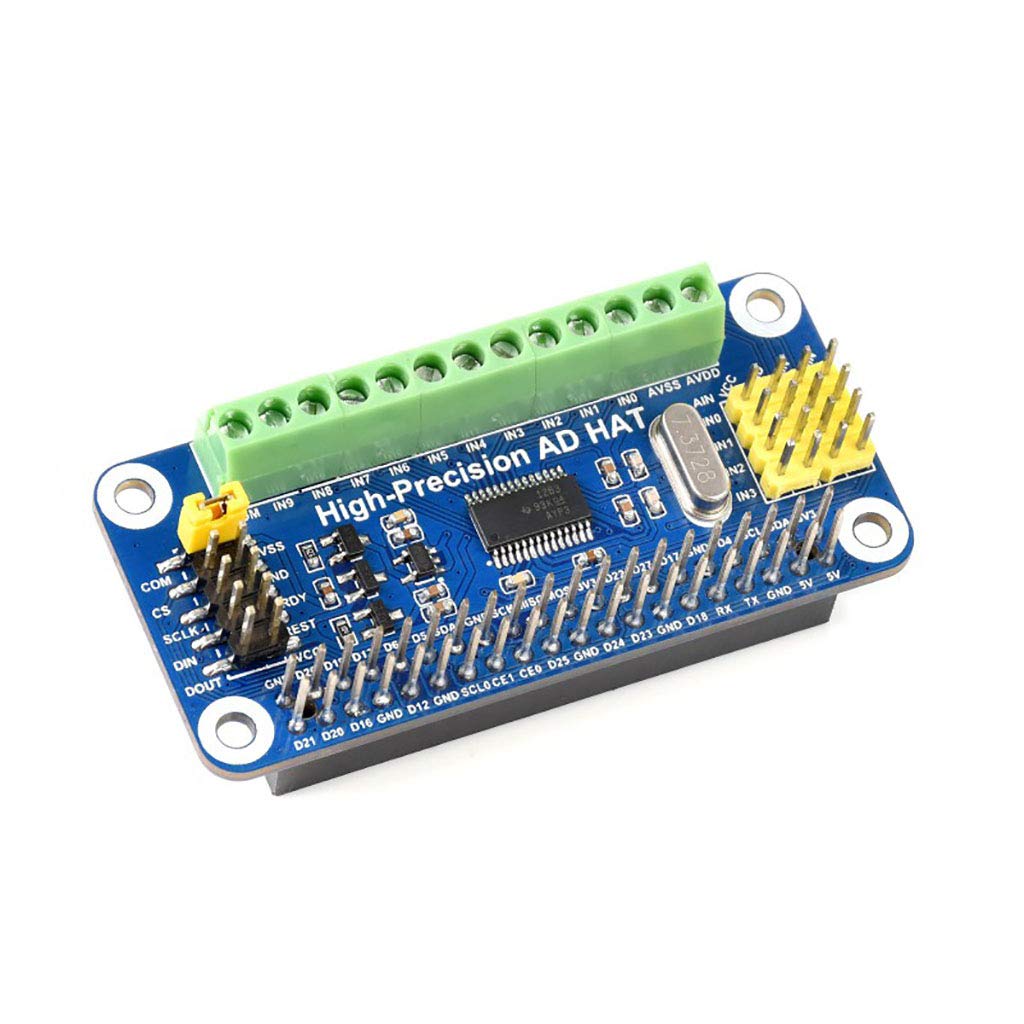

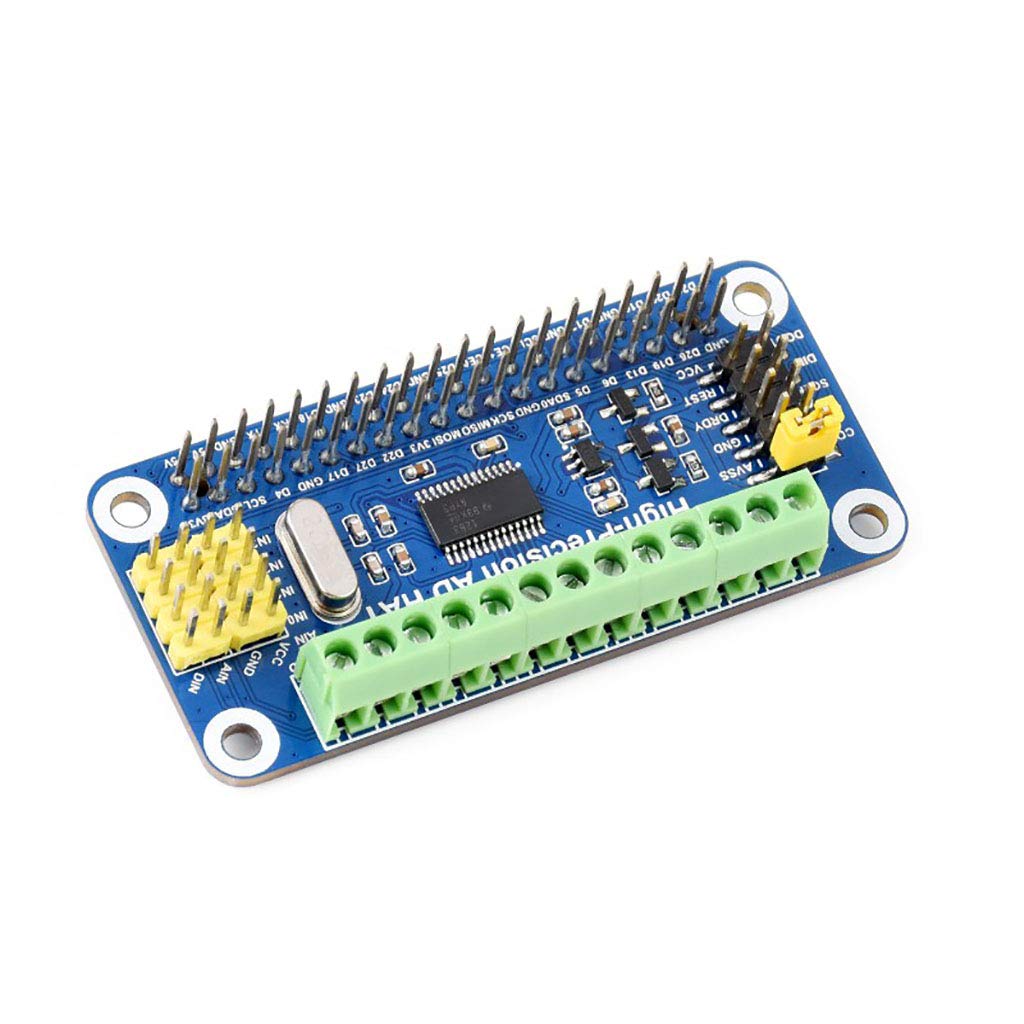

High-Precision AD HAT Compatible with Raspberry Pi Series & Jetson Nano, ADS1263 10-Ch 32-Bit ADC

Marke: Coolwell
Modellname: High-Precision AD HAT
Konnektivitätstechnologie: Ethernet, WLAN
Enthaltene Komponenten: High-Precision AD HAT, Raspberry Pi screws (2 pieces)
Betriebssystem: Linux

- Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate
- with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)

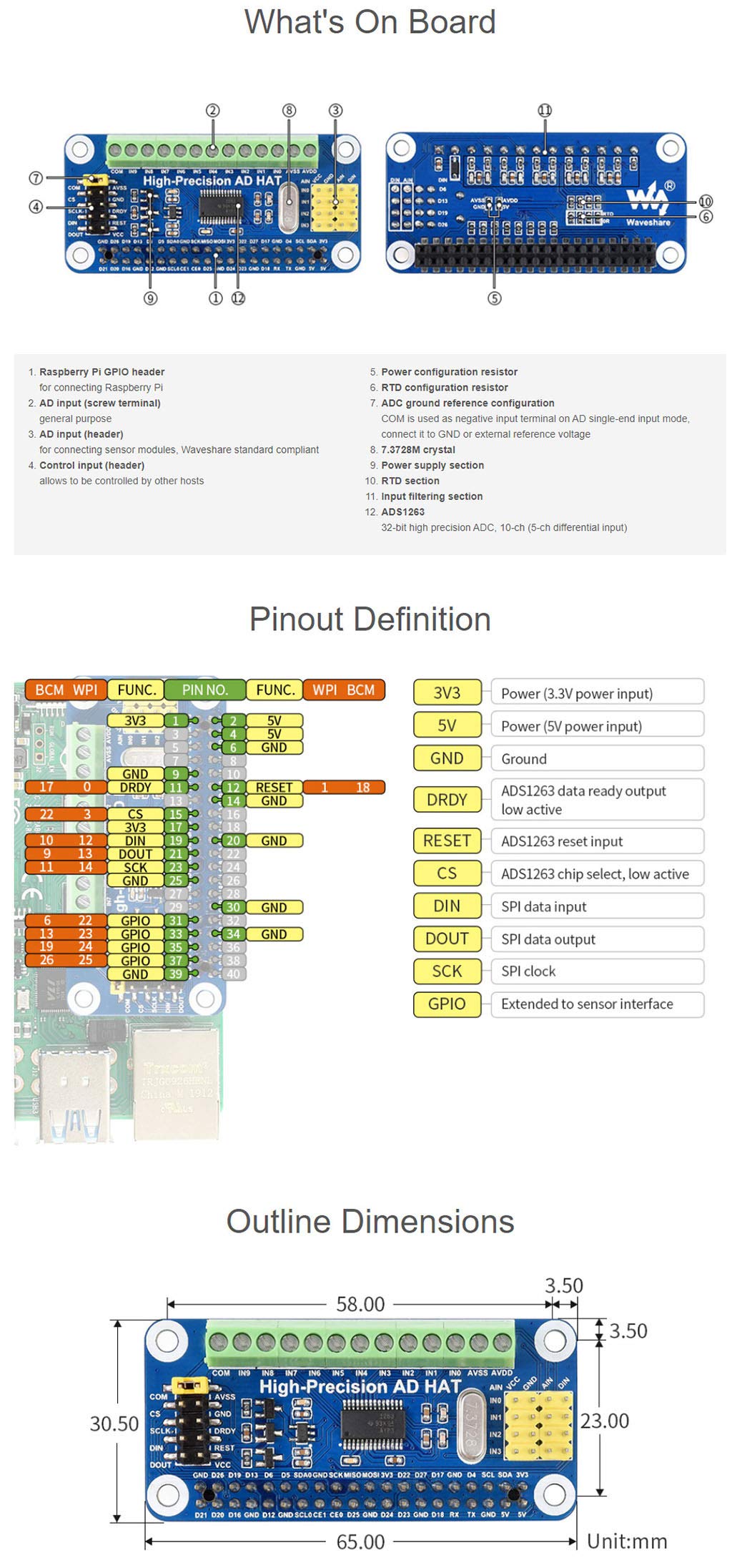

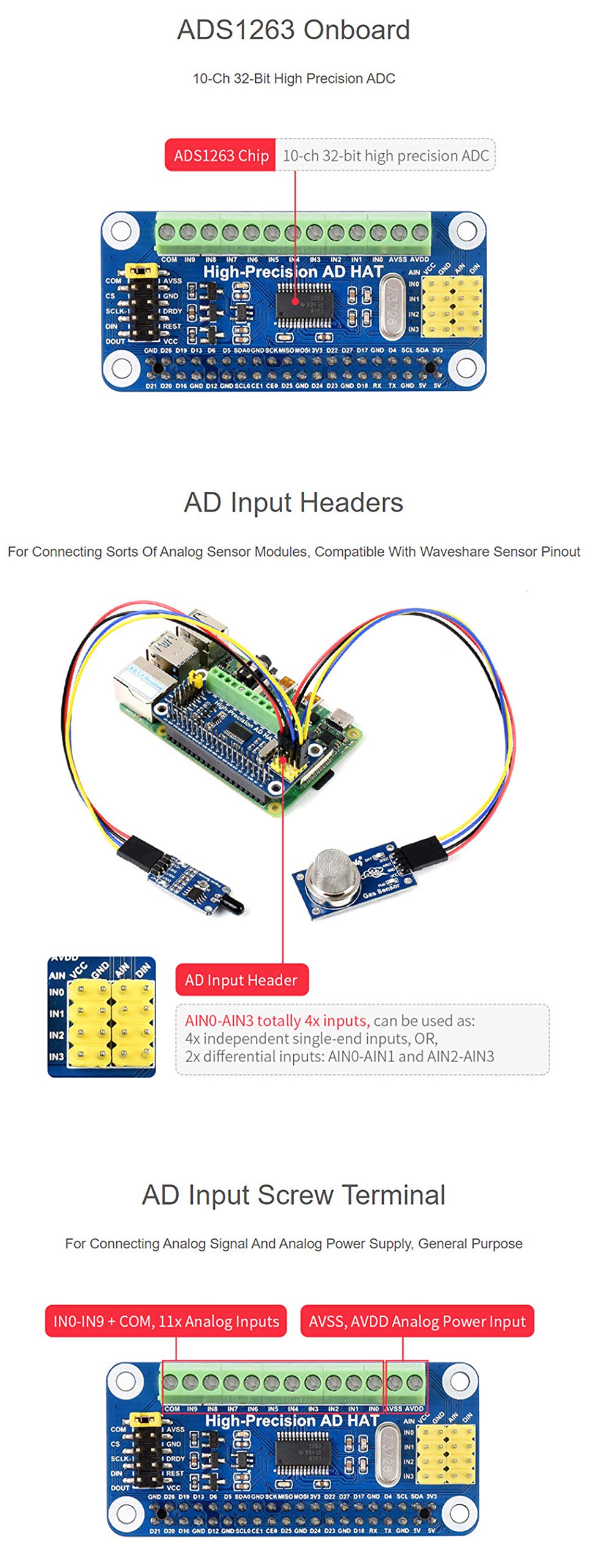

- Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules;Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
- Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi;Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
- Resources download: http://www.waveshare.com/wiki/High-Precision_AD_HAT
